C Shape copper wire clamps/ C Type connector

Origin: China

Material: Copper or Copper tinned

Conductor range: 10-895mm2

Applicable cable:

Copper C type connector is suitable for copper conductor,

Copper tinned C type connector is suitable for copper or aluminum conductor.

OEM: Acceptable

Send Inquiry
Category:
Description

Description

C Shape copper wire clamps/ C Type connector

C shape copper wire clamps that are specifically designed for copper tap and parallel connections of stranded copper cables in earthing applications.It is for tapping into unbroken continuous main, as a wire joint or two-way splice.

The C type connector made from heavy wall, extruded, high conductivity copper with a “C” shape enabling joints and taps of Cu-Cu for overhead and grounding connections without cutting the main cable.They are suitable for establishing earthing systems and tapping off from low voltage overhead lines – C tap crimps accomodate copper cable conductors including run and tap offs, 7.5sqmm to 895sqmm copper conductors.

Drawing



C Type connector

Parameters Table

Model Suitable section of conductor(mm²) A H L b C
CCT-10 7.5-14 9.5 6.2 12 1.6 4
CCT-16 14.5-16 11.8 7.8 13 2 5
CCT-20 16.5-20 12.8 9.7 13 2.9 5.4
CCT-26 21-26 14.7 10.9 16 3.2 6.5
CCT-44 27-44 19 14.4 20 4 8.5
CCT-60 45-60 21 15.1 22 4 9.7
CCT-76 61-76 24.4 17.6 22 5 10.8
CCT-98 77-98 27.8 18.8 25 5 12.8
CCT-122 99-122 29.8 21.2 26 5.5 13.5
CCT-154 123-154 34 24.4 28 6 17
CCT-190 155-190 37 25.4 35 6 17.4
CCT-240 191-240 40 28.5 40 7 19
CCT-288 141-288 44.5 31.1 45 7 22.3
CCT-365 289-365 47.5 34 50 7 24.8
CCT-450 366-450 57 41 60 10 28
CCT-560 451-560 62 45 65 11 31
CCT-700 561-700 68 49.5 70 12 34
CCT-895 630-895 72 45 66.5 12 31

Material: Pure copper

Surface: copper or copper tinned

Service Life: More Than 50 Years

Feature: High Conductivity,Strong Anticorrosion,Cost-effective

Certificate: ISO 9001: 2015

Extruded ‘C’ from copper

C Shape copper wire clamps

Related product

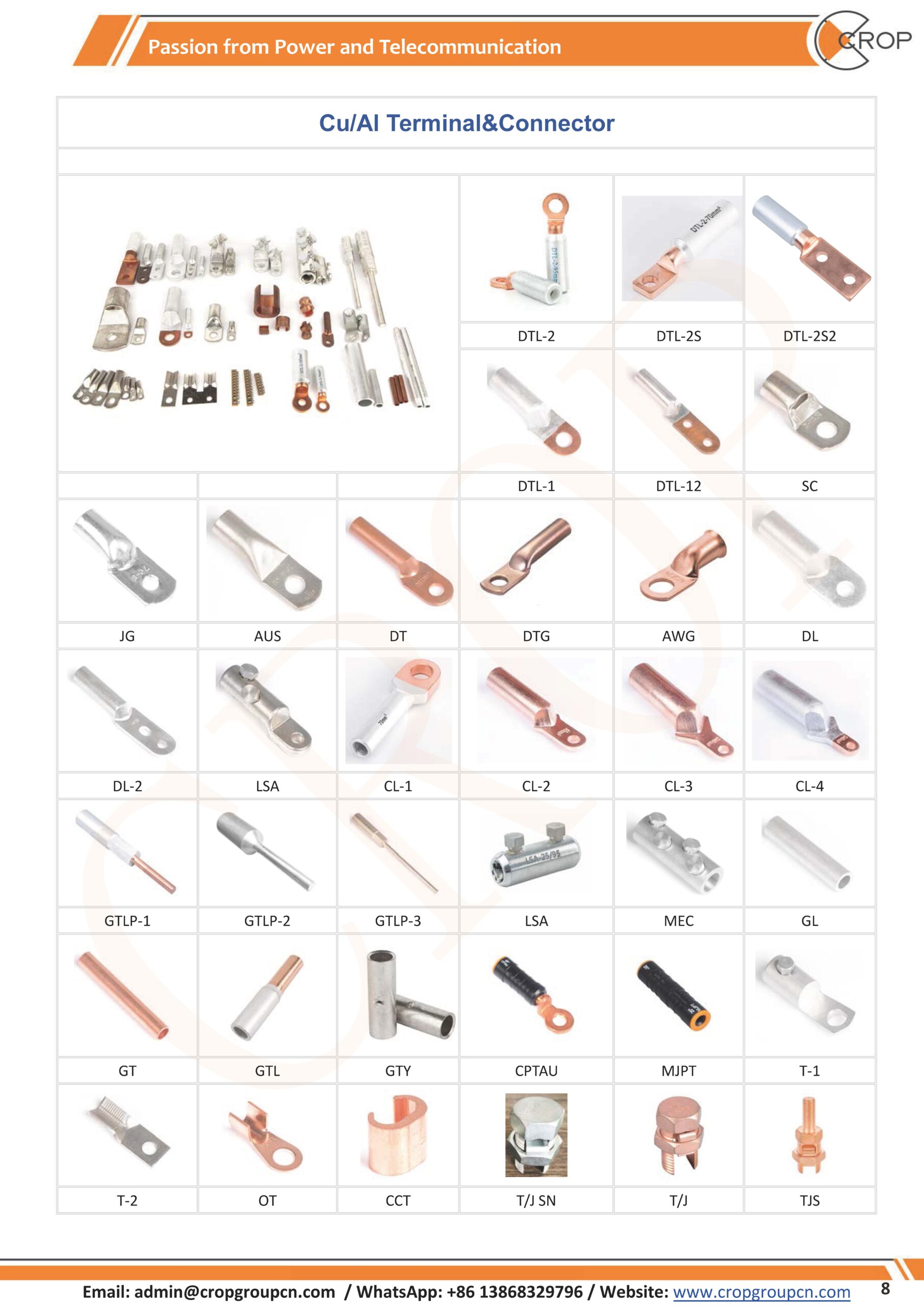

Cu Al Terminal
