C Shape Copper Connector CCT series

C shape copper connector also named C tap compression connector,it is used for copper tap and parallel connections of stranded copper cables in earthing system.CROP C shape copper connector has a full fange,the suitable section of conductor form 7.5mm2 to 895mm2.The CCT-895 is our new type customized by one of our customer.

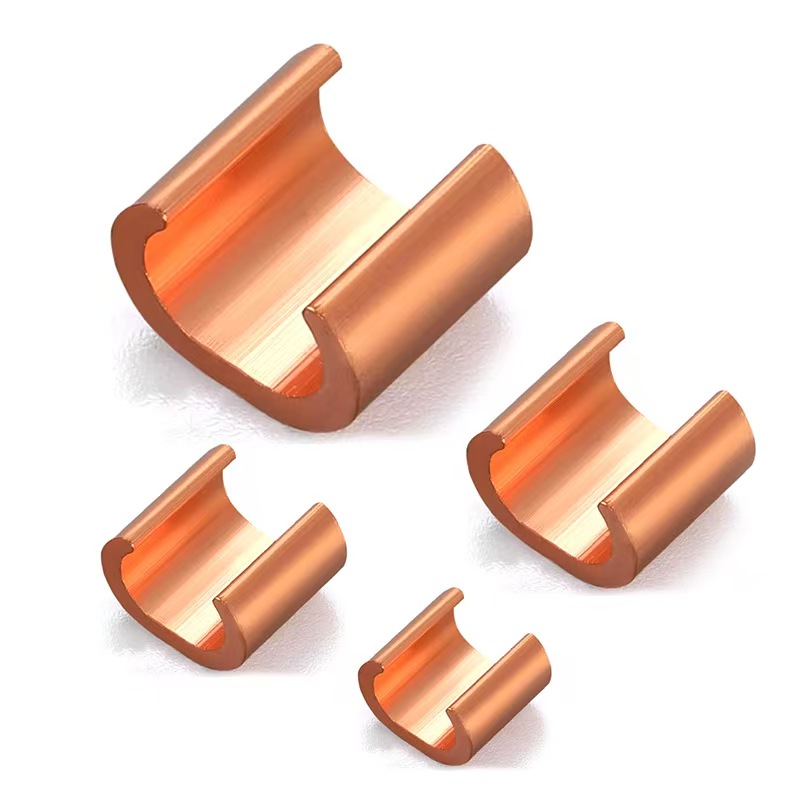

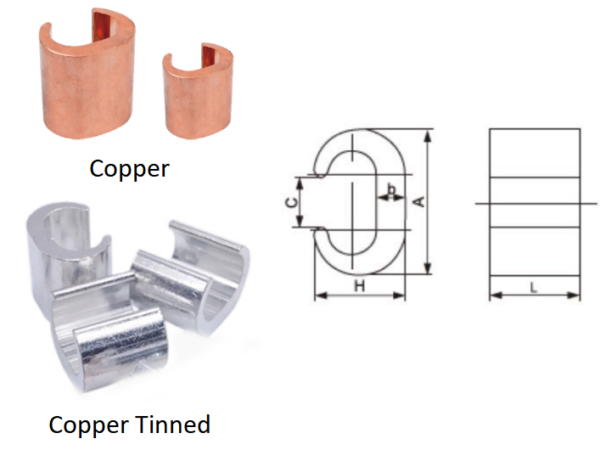

The C tap compression connector are made of extruded ‘C’ from copper with apurity greater than 99.5%.There are two ways of product surface treatment.one is puer copper surface,the other is copper tinned surface.Please check below product picture.

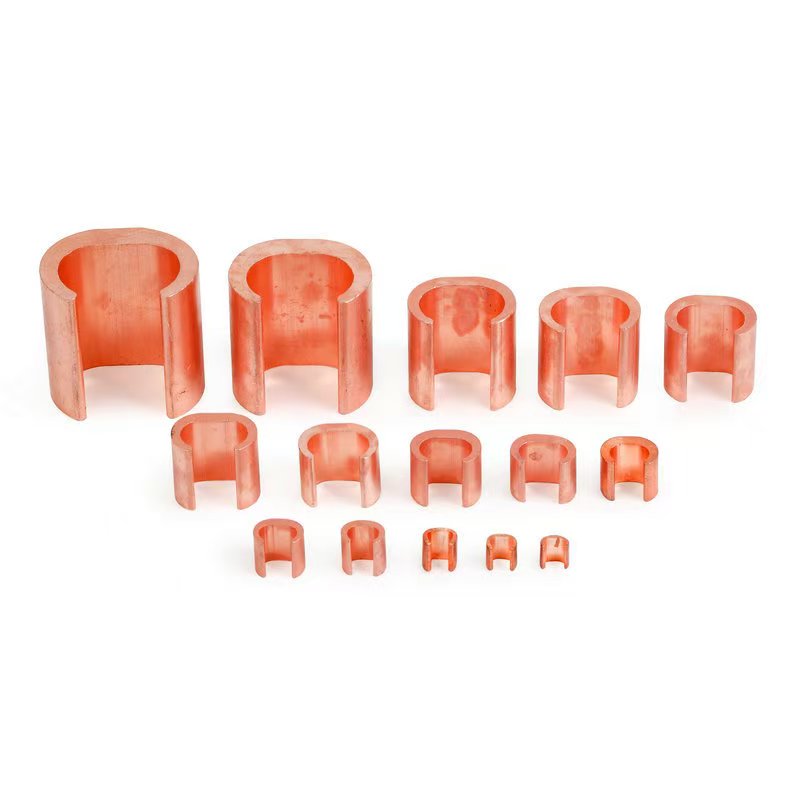

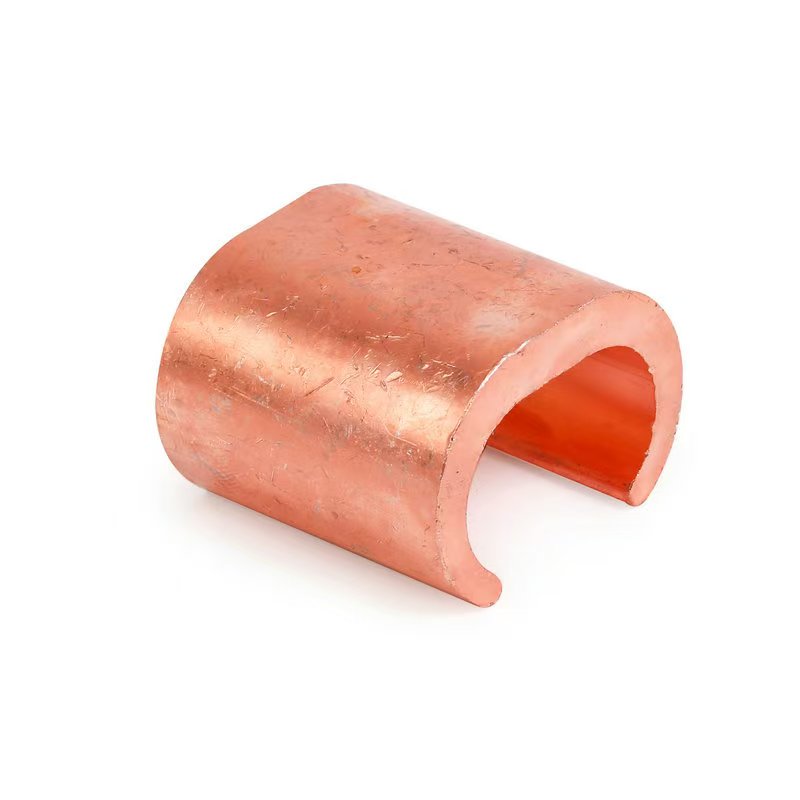

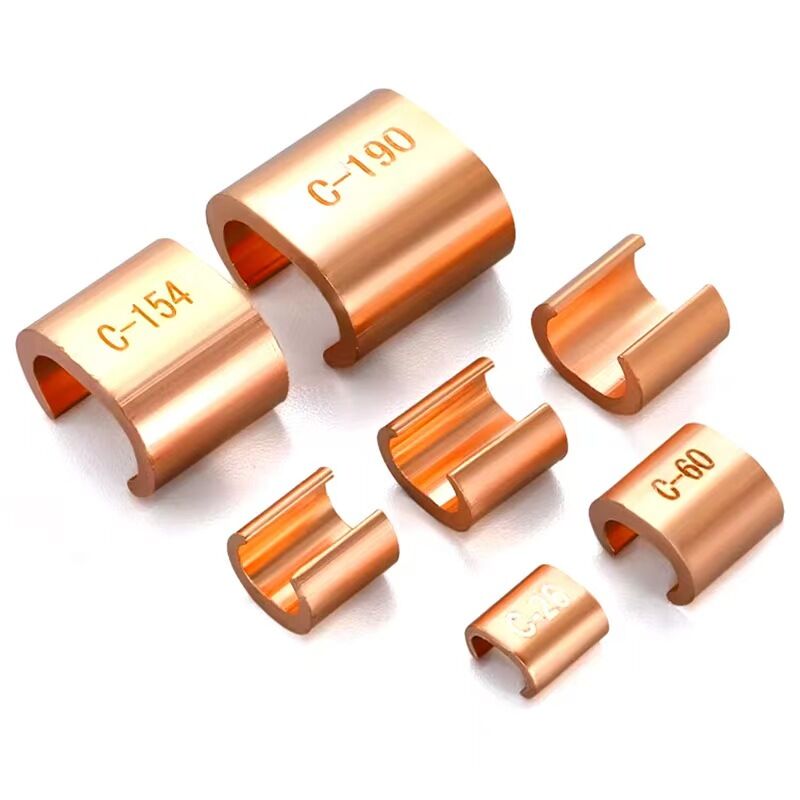

C shape copper connector

Model Suitable section of conductor(mm²) A H L b C
CCT-10 7.5-14 9.5 6.2 12 1.6 4
CCT-16 14.5-16 11.8 7.8 13 2 5
CCT-20 16.5-20 12.8 9.7 13 2.9 5.4
CCT-26 21-26 14.7 10.9 16 3.2 6.5
CCT-44 27-44 19 14.4 20 4 8.5
CCT-60 45-60 21 15.1 22 4 9.7
CCT-76 61-76 24.4 17.6 22 5 10.8
CCT-98 77-98 27.8 18.8 25 5 12.8
CCT-122 99-122 29.8 21.2 26 5.5 13.5
CCT-154 123-154 34 24.4 28 6 17
CCT-190 155-190 37 25.4 35 6 17.4
CCT-240 191-240 40 28.5 40 7 19
CCT-288 141-288 44.5 31.1 45 7 22.3
CCT-365 289-365 47.5 34 50 7 24.8
CCT-450 366-450 57 41 60 10 28
CCT-560 451-560 62 45 65 11 31
CCT-700 561-700 68 49.5 70 12 34
CCT-895 630-895 72 45 66.5 12 31

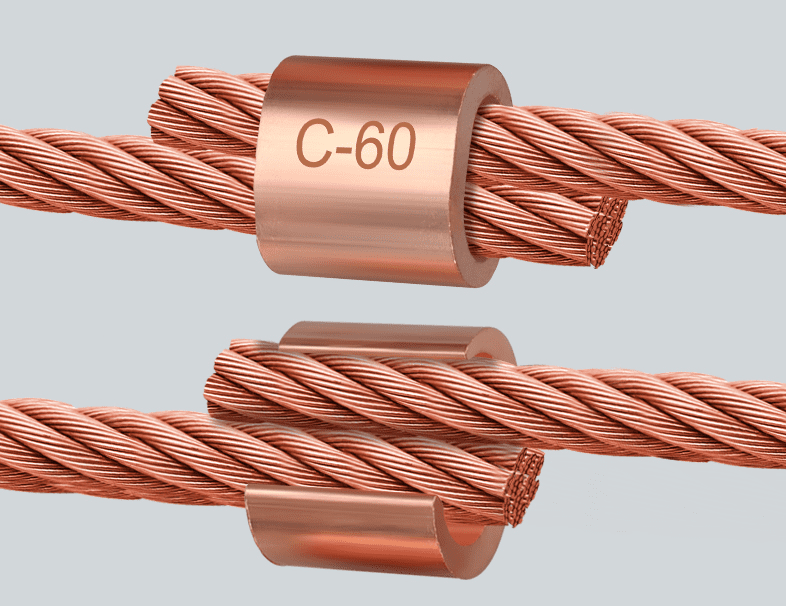

C tap compression connector available to achieve earthing connections on copper type cable conductors with cross-section areas 10sqmm to 895sqmm – installed using appropriate ratchet, hydraulic or battery type crimping tools and associated die sets.
