Description

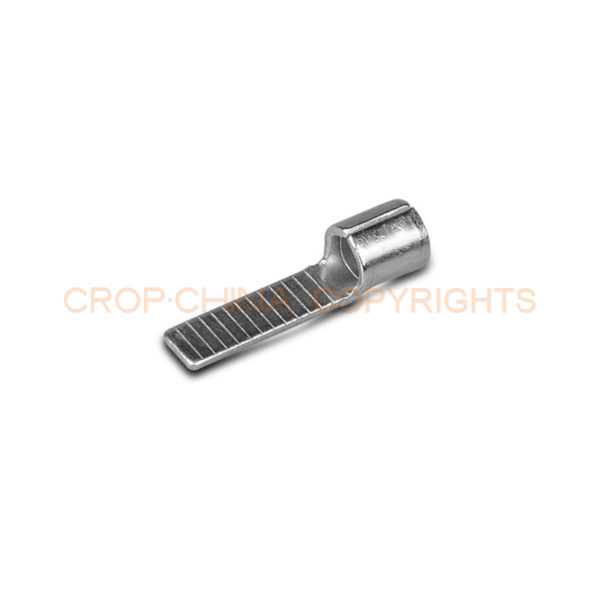

Description of Non-insulated crimp blade connector
Non-insulated crimp blade connector are also named crimp blade connector or bootlace ferrules.Crimp blade connectorare used to terminate stranded wires.Bootlace ferrule is made of tin plated copper,uninsulated ferrules are designed to form neat end terminations to multi-strand cables or wires.Smooth funnel entry assists in wire insertion.Specifically designed to aid in termination of extra flexible fine stranded conductor,provides enhanced flexibility relating to wire termination and management.A positive contact surface helps ensure system integrity.
Material of crimp blade connector
Tin plated copper

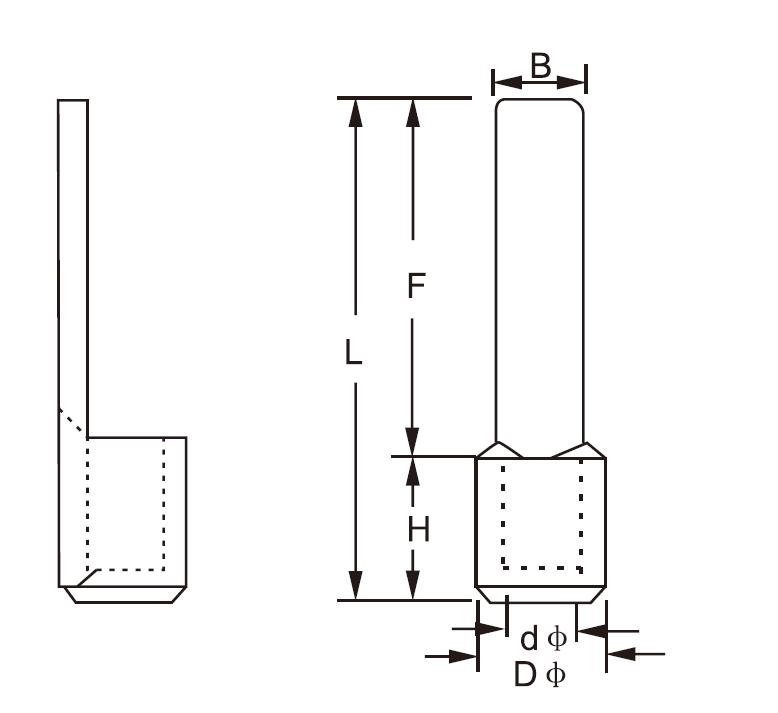

| Item No. | Dimension(mm) | Specification | |||||
|---|---|---|---|---|---|---|---|
| B | D | d | F | H | L | ||
| DBN 1.25-10 | 2.3 | 3.4 | 1.7 | 10 | 4.8 | 14.8 | Conductor section:0.5-1.5mm2 A.W.G.: 22-16 Max Current:I max.=19A Thickness: 0.7mm |
| DBN 1.25-11 | 3 | 11 | 15.8 | ||||
| DBN 1.25-14 | 3 | 14 | 18.8 | ||||
| DBN 1.25-18 | 2.2 | 18 | 22.8 | ||||
| DBN 2-9 | 2.4 | 4.1 | 2.3 | 9 | 4.8 | 13.8 | Conductor section:1.5-2.5mm2 A.W.G.: 16-14 Max Current:I max.=27A Thickness: 0.8mm |
| DBN 2-14S | 2.4 | 14 | 18.8 | ||||
| DBN 2-14L | 3 | 14 | 18.8 | ||||
| DBN 2-18 | 2.2 | 18 | 22.8 | ||||
| DBN 5.5-10 | 2.8 | 5.6 | 3.4 | 10 | 6 | 14.8 | Conductor section:4-6mm2 A.W.G.: 12-10 Max Current:I max.=48A Thickness: 1.0mm |
| DBN 5.5-14 | 4.5 | 14 | 21 | ||||
| DBN 5.5-18 | 4.5 | 18 | 23 | ||||
| DBN 8-14 | 6 | 7.2 | 4.5 | 14 | 8.5 | 22.5 | Max. Current: I Max.=62A Thickness: 1.2mm |
| DBN 14-16 | 6 | 9 | 6.5 | 16 | 11 | 27 | Max. Current: I Max.=88A Thickness: 1.5mm |
| DBN 822-17 | 7 | 11.5 | 7.7 | 17 | 12 | 29 | Max. Current: I Max.=115A Thickness: 1.7mm |
Related Product

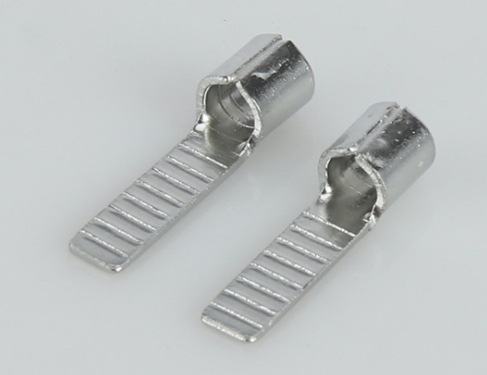

Features of bootlace ferrule
1.Seamless barrels.
2.Smooth funnel entry to make wire insertion easier.
