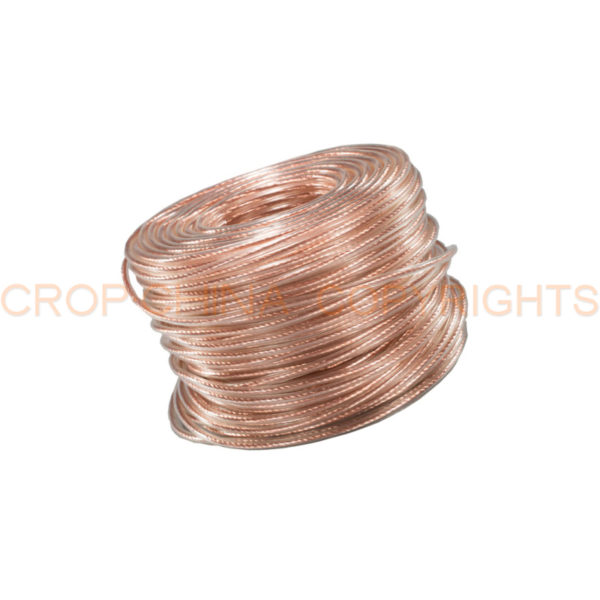

Description of bare stranded copper wire with PVC insulated
1: Bare stranded copper wire with PVC insulated is suitable for flexible electrical,conductive or electrical grounding wire use.
2: It is made of greater than 99.95% pure copper
3: Insulated braided flat wire
Material: bare copper with PVC insulated or bare copper with tin coating with PVC insulated
Standard design:
The main electrical parameters of copper braided wire are DC resistivity (20 ℃) not more than 0.022Ωmm2 / m, and DC resistivity (20 ℃) of tinned copper braided tape not more than 0.0234Ωmm2 / m.
Application：
Copper tinned flexible braided wire is used for flexible electrical,conductive or grounding connection.It also used for non-horizontal live motion and as a power accessory in medium and low voltage circuit breakers.
The construction of power distribution lines requires safety and reliability, maintaining power continuity, reducing line losses, improving transmission efficiency, and ensuring good power quality.
| Cross-section (mm²) |
structure | outer dimension | calculating weight （kg/km) | ||
|---|---|---|---|---|---|
| standard Cross-section (mm²) | calculating Cross-section (mm²) | layers*No.of strands*No.of wires/singlewire diameter (mm) | width(mm) | thickness(mm) | |
| 2 | 2.12 | 24X5X1/0.15 | 5 | 0.6 | 21 |
| 2.5 | 2.54 | 24X6X1/0.15 | 6 | 0.7 | 25.4 |
| 4 | 4.24 | 24X10X1/0.15 | 8 | 0.8 | 42 |
| 4 | 3.81 | 36X6X1/0.15 | 10 | 0.7 | 38 |
| 6 | 6.36 | 36X10X1/0.15 | 12 | 0.8 | 63 |
| 8 | 8.48 | 48X10X1/0.15 | 13 | 0.8 | 85 |
| 10 | 10.17 | 48X12X1/0.15 | 15 | 1 | 102 |
| 10 | 10.6 | 40X15X1/0.15 | 15 | 1.2 | 106 |
| 12 | 12.72 | 48X15X1/0.15 | 20 | 1.2 | 127 |
| 16 | 16.96 | 48X20X1/0.15 | 22 | 1.3 | 170 |
| 20 | 21.2 | 48X25X1/0.15 | 25 | 1.4 | 212 |
| 25 | 25.43 | 48X30X1/0.15 | 30 | 1.5 | 254 |
| 25 | 25.43 | 48X15X2/0.15 | 20 | 2.5 | 254 |
| 35 | 33.93 | 64X30X1/0.15 | 40 | 1.5 | 340 |
| 35 | 33.93 | 48X20X2/0.15 | 25 | 2.6 | 340 |
| 50 | 50.87 | 64X45X1/0.15 | 50 | 1.8 | 510 |
| 50 | 50.87 | 48X30X2/0.15 | 30 | 3 | 510 |
| 50 | 50.87 | 48X20X3/0.15 | 25 | 4 | 510 |
| 70 | 70.66 | 80X50X1/0.15 | 70 | 2 | 706 |
| 70 | 67.83 | 64X30X2/0.15 | 40 | 3 | 680 |
| 75 | 76.34 | 48X30X3/0.15 | 32 | 4.5 | 763 |
| 100 | 101.72 | 96X60X1/0.15 | 100 | 2 | 1017 |
| 100 | 101.72 | 64X45X2/0.15 | 52 | 4 | 1017 |
| 100 | 101.72 | 48X30X4/0.15 | 35 | 6 | 1017 |
| 120 | 118.68 | 96X70X1/0.15 | 120 | 2.5 | 1190 |
| 120 | 122.92 | 48X30X4+48x25x1/0.15 | 37 | 8 | 1230 |
Customized available for special dimension,shapes and structure.We can according to your drawing customized.
