Anchoring Clamps Aluminum Alloy for ADSS/Round Cable PA

Anchoring Clamps for ADSS/Round Cable

Send Inquiry
Description

Description

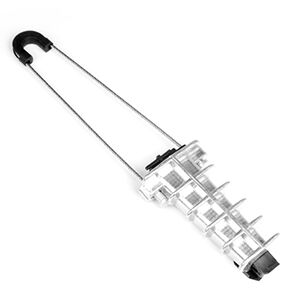

Description of anchoring clamps

The anchoring clamps for ab cable service line.The ADSS anchoring clamps are designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The ADSS dead end clamp is composed of a body, wedges and removable and adjustable bail or pad. One core adjustable anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of ADSS anchoring clamps

The ADSS anchoring clamps body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of adjustable anchor clamps

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing ADSS dead end clamps, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.

Models PA-100S* PA-120S* PA-140S* PA-160S* PA-180S* PA-200S*
Cable diameter(mm) 7 ~ 10 10 ~ 12 11 ~ 15 14 ~ 16 15 ~ 18 18 ~ 20
L(mm) default L: 400

(*)Add L(mm) in models
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
Tensile strength according to the cable
