Anchoring Clamps for ADSS / Round Cable PA35,57,69

  • For optical fiber cables type ADSS. • Automatic conical tightening. • Opening bail easy to be installed.

Send Inquiry
Description

Description

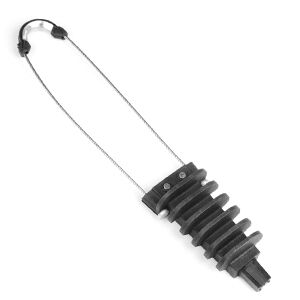

ADSS ANCHORING CLAMP FOR ADSS/ROUND CABLES/ MESSENGERED FIG-8 CABLES

Description of ADSS anchor clamp

The ADSS anchor clamp is designed to anchor insulated ADSS conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.ADSS anchoring clamp are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of dead end anchor clamps

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of ADSS tension clamp

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing ADSS dead end clamp, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.

Models PA35-S(*) PA57-S(*) PA69-S(*)
Cable Diameter(mm) 3 ~ 5  5 ~ 7 6 ~ 9
L(mm) 120,200,300 120,200,300 120,200,300

(*)Add L(mm) in models
For messengered Fig-8 cable, AAAC or Steel Fibre glass reinforced resin; Round ADSS
Tensile strength according to the cable
