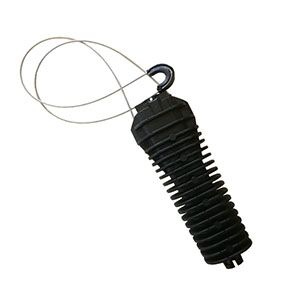

Anchoring Clamp Plastic type for ADSS

Anchoring Clamp Plastic type for ADSS Material Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core. Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Send Inquiry
Category:
Description

Description

Description of anchor clamp plastic

The anchor clamp plastic for ADSS main line.The adjustable anchor clamp is designed to anchor insulated ADSS conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad.The ADSS anchor clamp plastic are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of adjustable anchor clamp

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

Feature of adjustable tension clamp

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing cable dead end clamp, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.

Models AD-1012-*.500 AD-1214-*.500 AD-1416-*.500 AD-1618-*.500
Cable diameter(mm) 10 ~ 12 12 ~ 14 14 ~ 16 16 ~ 18
Min Tension (daN) 800 800 800 800

(*)Add “FA” mean steel rope, add “SS” mean stainless steel rope
For round ADSS
