Anchor clamp for Main line 4AN(rope type)

Standard: NFC 33-042. Material Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core. Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).

Send Inquiry
Category:
Description

Description

Anchor clamp for Main line 4AN(rope type)

Description of Dead end clamp

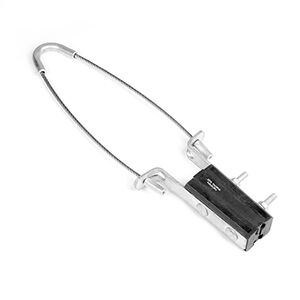

Dead end clamp for ab cable service line.The dead end clamp is designed to anchor insulated service lines with 2 or 4 conductors to the pole or wall. The clamp is composed of a body, wedges and removable and adjustable bail or pad. One core Anchor clamps are design to supporting the neutral messenger,the wedge can be self-adjusting. Pilot wires or street lighting conductor are led alongside the clamp. The self opening is featured by an integrate spring facilities for easily insert the conductor into the clamp. Standard: NFC 33-042.

Material of dead end clamp for ab cable

The clamp body, the main mechanical component is manufactured in heavy duty weatherproof synthetic material.
The wedge, made from synthetic material exerts necessary mechanical pressure in retaining the cable in the body of the clamp.
The pull hook is made from anti corrosion rod.
For anchoring isolated coaxial and unipolar cables.

  •

Models 4AN16.35S-* 4AN50.120S-* 4AN50.120BS-*
Cable range (mm²) 4×16-35 4×50-120 4×50-120+2×10-35
Cable diameter(mm) 8 ~ 11 14-16 14-16
Core No. 4 4 4
MBL(daN) 1500 3200 3200

(*)Add “FA” mean steel rope, add “SS” mean stainless steel rope

Related Product

Anchor clamp for Main line

Feature of tension clamp

1.Simple and fast installation requiring no tools.
2.Suits to all field configurations.
3.Possible to mount on pole line hardware with open or closed eye.
4.Mechanical traction resistant.
5.Supports industrial duty tension.
6.Corrosion resistant.
7.Weatherproof.

For the correct installing cable dead end clamp, the following steps are recommended:

  • Loosen the mooring hook from the anchor clamp.
  • Place the hook en the place to be mooring point or support, fixing it inside the body of the clamp
  • Remove the wedge from its base and then place the cable within the clamp.
  • Replace the wedge to its corresponding position and proceed to tense the cable taut.
