Description

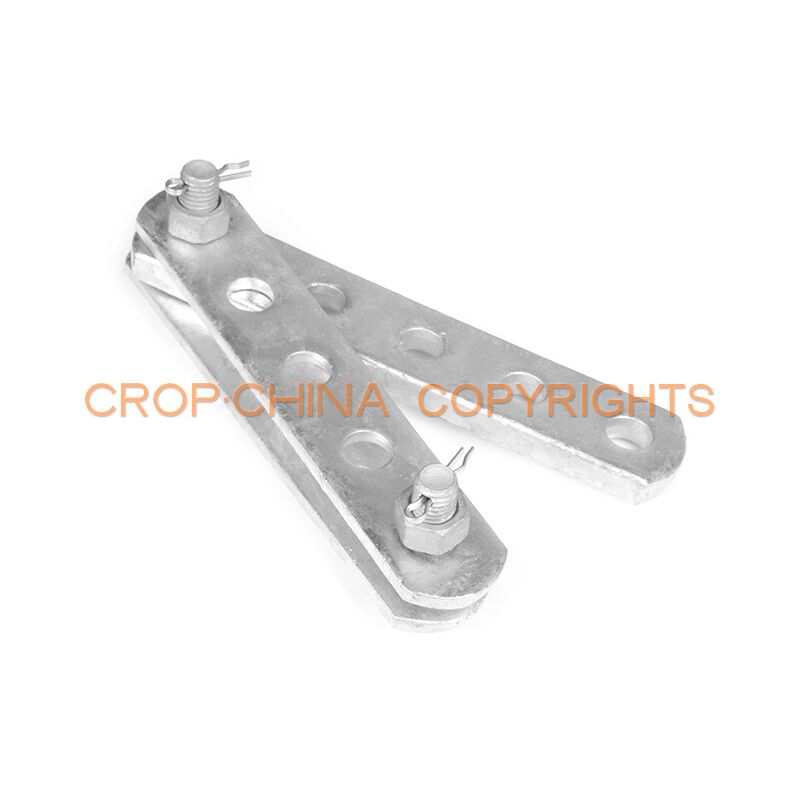

ADJUSTER PLATES
| Type | Dimensions in Millimeters | Specified Failure Load(kN) |
|||||||
| L1 | L2 | M | d | b | C | L | |||
| PT-7 | 45 | 60 | 16 | 18 | 16 | 18 | 225 | 345 | 70 |
| PT-10 | 50 | 65 | 18 | 20 | 16 | 20 | 225 | 300 | 100 |
| PT-12 | 60 | 75 | 22 | 24 | 16 | 24 | 300 | 465 | 120 |
| PT-16 | 65 | 50 | 24 | 26 | 18 | 26 | 325 | 505 | 160 |
| PT-21 | 70 | 60 | 27 | 30 | 26 | 30 | 350 | 550 | 210 |
| PT-30 | 80 | 70 | 36 | 39 | 32 | 38 | 400 | 630 | 300 |
| PT-50 | 160 | 80 | 42 | 45 | 38 | 40 | 740 | 1280 | 500 |
| PT-60 | 180 | 90 | 48 | 51 | 42 | 44 | 820 | 1390 | 600 |
