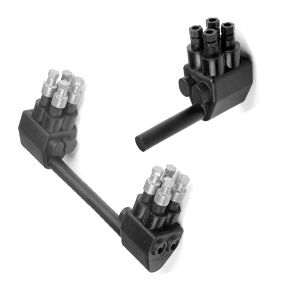

Insulated Waterproof Multi Tap Adapter

Insulated Waterproof Adapter Adapter is used to turn multiple conductors of low voltage. Whole adaptor is inserted into the IPC with piercing teeth who penetrate through the insulation.This joint is 100% waterproof. The adaptor can be installed with any IPC who allows you to transfer the required voltage, and has the ability yo carry the required number of conductors. Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Send Inquiry
Category:
Description

Description

Multi Tap Adapter



Description
Insulated Waterproof Multi Tap Adapter is used to turn multiple conductors of low voltage. Whole adaptor is inserted into the IPC with piercing teeth who penetrate through the insulation.This joint is 100% waterproof. The adaptor can be installed with any IPC who allows you to transfer the required voltage, and has the ability yo carry the required number of conductors.
Standard: IEC 61284, EN 50483, IRAM2435, NFC33 020.

Models Adaptor 2 Adaptor 4
Main Line(mm²) IPC IPC
Service Line (mm²) RE/RM 2×1.5-35  RE/RM 4×1.5-35
Bolt No. 4 8
Torque (Nm) 9NM 9NM
Remarks ISO to ISO ISO to ISO

Material
Body in Aluminum alloy with tinned surface coating, Plastic Cover
