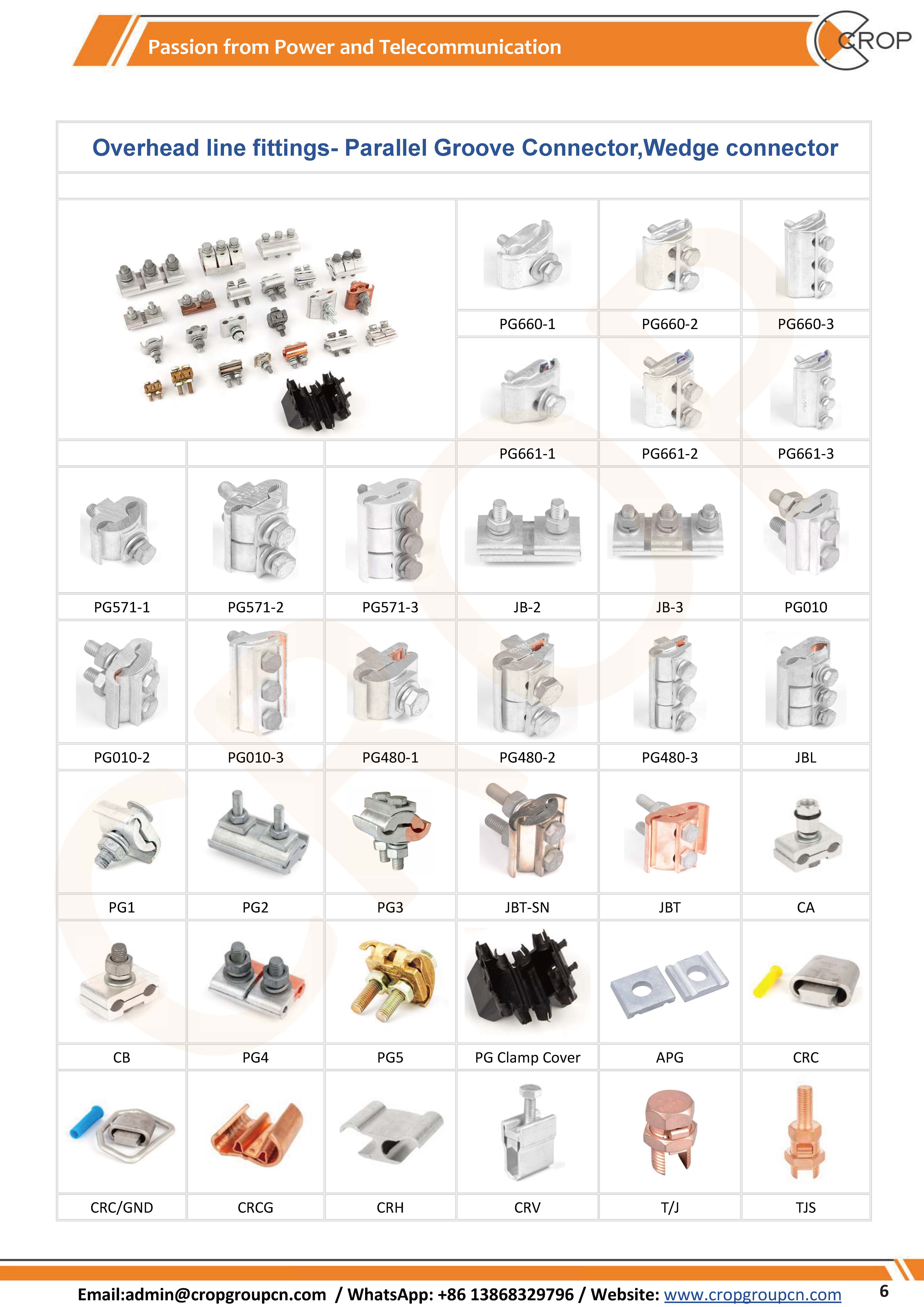

Aluminum Parallel Groove Clamp
The aluminum parallel groove clamp bolt type PG clamp is made of high-quality aluminum, this clamp is built to last and can handle even the most strenuous projects. Whether you’re working on a home improvement project or a professional one, this clamp is up for the task. Plus, it’s easy to use and adjust, so you can get just the right grip every time.
Product parameter of Parallel Groove Clamp
| Models | PG660-11 | PG660-12 | PG660-22 | PG660-23 | PG660-24 |
| Main Line(mm²) | 16-70 | 16-150 | 16-70 | 16-150 | 25-185 |
| Service Line (mm²) | 16-70 | 16-150 | 16-70 | 16-150 | 25-185 |
| Bolt No. | 1 | 1 | 2 | 2 | 2 |
| Remarks | Al to Al | Al to Al | Al to Al | Al to Al | Al to Al |
| Models | PG660-31 | PG660-32 | PG660-33 | PG660-34 |
| Main Line(mm²) | 16-70 | 16-150 | 25-240 | 35-300 |
| Service Line (mm²) | 16-70 | 16-150 | 25-240 | 35-300 |
| Bolt No. | 3 | 3 | 3 | 3 |
| Remarks | Al to Al | Al to Al | Al to Al | Al to Al |
Matrial of PG Clamp
The parallel groove clamp is made of plate-plate structure and aluminum alloy.
The bolt-type parallel groove clamp is used to fix the wire, relying on the pressure of the bolts to create a connection. The groove provides a relatively uniform and constant pressure on the wire, which can be disassembled after installation. It is often used at the jumper or ground wire lap joints at the strain end of the line. In order to ensure that the clamp has sufficient and even pressure on the wire, it is grooved. The parallel groove clamp generally adopts a two-bolt or three-bolt structure, and the installation requires uniform force when tightening the bolts. Sometimes in order to ensure the reliability of operation, two or three clamps are connected in parallel at equal intervals during line construction. The holding force of the bolt-type parallel groove clamp to the wire is about 10%-20% of the calculated breaking force of the wire..
Packing of bolt-type parallel groove clamp
The inner packing is white box,the outer packing is carton.
